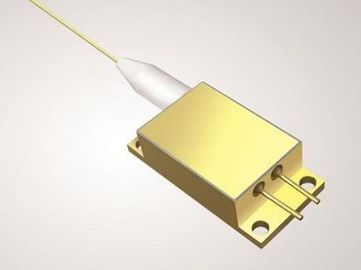

Światłowodowe pompowanie laserowe - 8 W 793 nm

Światłowodowe pompowanie laserowe - 8 W 793 nm

MOQ: 1 sztuka / sztuk
Okres dostawy: 3-6 tygodni
Metoda płatności: T/T
Wydajność dostaw: 100 000 / rok
Szczegółowe informacje
Miejsce pochodzenia
CHINY
Nazwa handlowa
BWT
Orzecznictwo
ISO9001
Numer modelu
K793DA2RN-8.000 W.
Minimalne zamówienie:
1 sztuka / sztuk
Czas dostawy:
3-6 tygodni
Zasady płatności:
T/T
Możliwość Supply:
100 000 / rok
High Light:

moduł diod laserowych dużej mocy

,

dużej mocy

Opis produktu

Features:

793nm wavelength 

8W output power 

105µm fiber core diameter 

0.22N.A. 

1900nm-2100nm feedback protection


Applications:

Fiber laser pumping 

Solid state laser pumping



Specifications(25℃) Symbol Unit K793DA2RN-8.000W
Minimum Typical Maximum

Optical Data





CW-Output Power Po W 8 - -
Threshold current Ith A - 1
Operating current Iop A - - 5.5
Operating voltage Vop V - - 4
Reverse Voltage Vre V - 5 -
Slope Efficiency η W/A - 2 -
Electrical-to-Optical Efficiency PE % - 45 -
Center wavelength ʎc nm 790 - 796
Spectral width(FWHM) δλ nm   3
Back reflection wavelength Range λ nm 1900 - 2100
Back reflection isolation △λ dB - 30 -
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.3 -
Light within 0.15NA - % - 90 -
Fiber Data Buffer diameter Dbuf µm - 250 -
Cladding diameter Dclad µm - 125 -
Core diameter Dcore µm - 105 -
Numeric aperture NA - - 0.22 -
Fiber length lf m - 1 -
Fiber Bend Radius - mm 60 - -
Others ESD Vesd V   - 500
Storage Temperature Tstg -20 - 70
Lead Soldering Temp Tls - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top 15 - 35
Relative Humidity RH % 15 - 75
